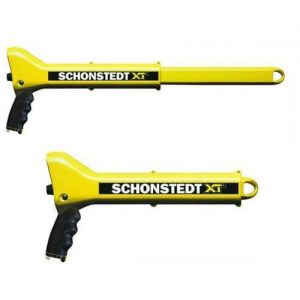

SCHONSTEDT-GA-92XTd

SCHONSTEDT-GA-92XTd

In its holster, the XT leaves both hands free on the way to the job site, single-handed!

CONTACT

Description

One hand operation
Operates in both retracted and extended modes
Fingertip control of volume and sensitivity
Quick change battery compartment
Battery indicator
Most portable and ergonomic
Smallest for easy storage
One Handed Operation
Battery Replacement in grip (does not expose electronics)
Audio & Visual Output
Battery & Sensitivity Indicators
Continuous levels of Sensitivity
Continuous levels of Sensitivity
Operates in both retracted and extended modes
Signal Strength and Polarity Indications
No response to aluminum, brass, or copper
Patented HeliFlux® sensors
Modular construction; high performance components; 7-year warranty

GA-92XT Specifications: Two models to choose from

Audio OutputAudio Signal increases in frequency with gradient-field intensity. Idle frequency = 10 Hz
Visual OutputExpanding bar graphs indicate polarity (+ or -) and relative strength (GA-92XTd model only)/td>
Battery Life24 Hours (intermittent usage)
Input PowerSupplied by one 9-volt lithium battery
Battery Indicator4-segment LCD
VolumeContinuous control
GainContinuous control, with range indicated by a 4-segment LCD at each quarter turn, L @ 0-1/4, M @ 1/4-1/2, H @ 1/2-3/4, XH 3/4-Full
WeightApproximately 2.4 lb. (1.1 kg)
Operating Temp-13° F to 140° F (25° C to 60° C)
Overall LengthUnit extended: 26 in. (~66 cm) Unit collapsed: 15.5
Water Resistant Length11.5 in. (~29 cm) (when extended)
Nominal Sensor Spacing9.5 in. (~24 cm)
Construction30% glass-filled nylon, high impact ABS, .2″ (~5 mm)
Carrying Case (p/n: XT50000)
Holster & Belt (p/n: XT30000)
1 – 9V Lithium Batteries (in unit) (p/n: B11014)
Headset (p/n: H30006)
